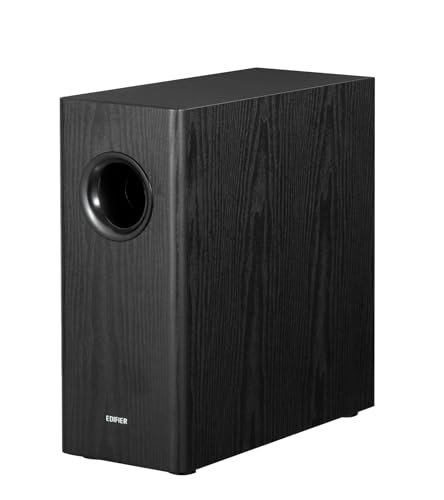

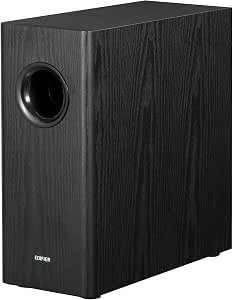

The Edifier T5s Powered Subwoofer is a compact powered subwoofer built to add low-end bass to small stereo and vinyl systems. It works best with bookshelf speakers in small to mid-size rooms and connects through a line-level RCA or subwoofer output path.
The T5s has a built-in amplifier, RCA connectivity, and the basic controls you need to blend it into a music setup. It uses an MDF cabinet, a front-firing driver, and a rear bass port, which is a common formula in budget home audio.
For vinyl, the job is simple: add low-end support without pulling attention away from the main speakers.
What the key features mean for vinyl listening
The low-pass crossover decides how high the sub plays. In plain English, it tells the sub where to stop so your bookshelf speakers can handle the rest.
The phase switch helps the sub line up with your speakers. If bass sounds thin at your seat, flipping phase can tighten things up fast.
The gain control sets output level. Start low, then bring it up until kick drum and bass guitar feel fuller, not louder than everything else.
A compact sub can work very well with small speakers because it handles the low frequencies they struggle with. That’s why a simple 2.1 setup often sounds more complete than bookshelves alone.
Compatibility and setup checklist
Here’s the plain-English rule: the sub doesn't usually connect straight to the turntable by itself. You need the right line-level path through a phono preamp, powered speakers, or a stereo receiver.
A common beginner setup is turntable to phono preamp to powered speakers. If those speakers include a sub out or supported line path, you’re in business.
If not, stop and confirm wiring before you buy. That’s the part lazy product pages skip, and it’s the part that saves you a return.
A receiver-based system is often easier. Turntable into phono stage, then receiver, then passive speakers and sub is usually the cleaner path.
Quick setup checklist:
- Confirm you have a sub output or line-level RCA path.
- Start the crossover near your bookshelf speaker roll-off.
- Set gain low first.
- Test placement before locking it in.
- Expect about 20 to 45 minutes for a first-time setup.
If the wiring and room fit check out, the last question is whether this is the best next dollar to spend.
