Quick specs and what they mean in practice
| Spec |
What to know |
| Driver size |

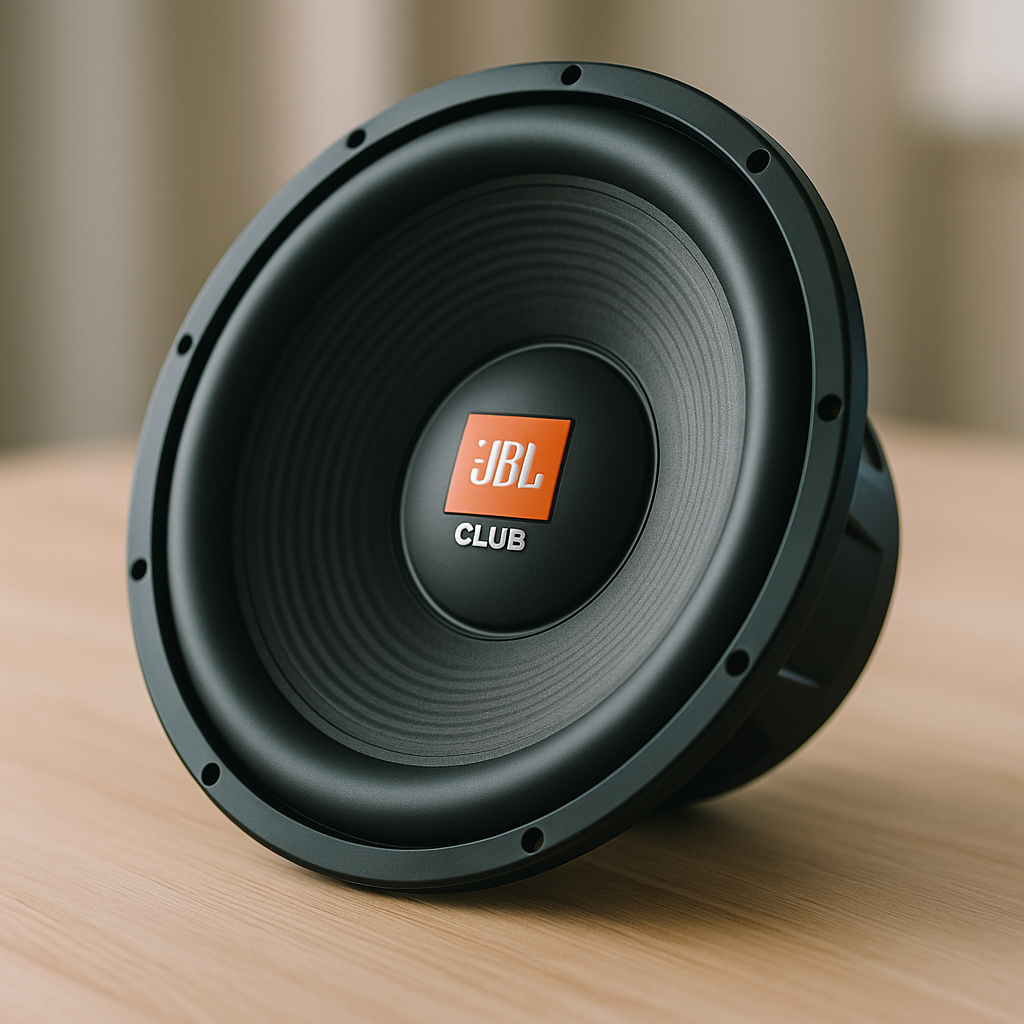

12-inch driver |
| Design |
Powered subwoofer |
| Connectivity |
RCA inputs, line-level connection |
| Controls |
Low-pass crossover, gain, phase control or switch |
| Cabinet size |
Large enough to measure before buying |
| Best room size |
Small to medium living rooms |
A 12-inch driver gives you better bass extension and more output headroom than many 8-inch models. It doesn’t have to sound oversized, but placement matters more.
RCA inputs make life easier with a stereo receiver or gear that already offers line-level output. They don’t mean you can run a raw turntable signal straight into the sub.
Crossover and phase controls are the whole reason a music sub can work with bookshelf speakers. They let you hand off bass cleanly instead of piling bass on top of bass.
Cabinet size is the boring spec people skip, then regret. Measure the floor space before you buy, especially if the only open spot is a corner.
Compatibility with common vinyl and stereo setups
| System |
Compatible? |
Where the sub connects |
| Turntable + phono preamp + powered speakers |
Maybe |
Only if the speakers or preamp chain provide a usable line-level sub path |
| Turntable + receiver + passive speakers |
Yes, usually |
Connect to the stereo receiver’s subwoofer output or pre-out |
| TV + stereo setup |
Yes |
Connect through the receiver or stereo hub with sub out |
Here’s the short version: most turntables can’t feed a powered sub directly. The sub needs a line-level connection, not raw phono-level output.
If your turntable has a built-in phono stage but your powered speakers don’t have sub out, compatibility gets shaky fast. If you’re not sure where the phono preamp belongs, start with this guide: /guides/what-is-a-phono-preamp/
A clean path is turntable to receiver to passive speakers, with the sub on the receiver’s subwoofer output. If you need help sorting the whole chain, this setup guide is the right next stop: /guides/turntable-setup-guide/
Starter settings for crossover, gain, and phase
Start with the crossover around 70 to 80 Hz for small bookshelf speakers. If your mains are larger and already have decent low-end, start lower.
Set gain low at first, near the bottom of the dial. You shouldn’t hear the sub as a separate source. You should just notice that the system sounds fuller.
Leave phase at 0 to start. If bass seems weak at the couch, flip it or adjust it after moving the sub a bit off the corner.
One realistic setup is small speakers in a living room, the sub a couple feet from the corner, crossover at 75 Hz, gain just above minimum, and phase at 0. After a few records, you nudge the gain slightly and the bass fills in without making vocals sound swollen.
The usual mistakes are crossover too high, gain too high, skipping phase adjustment, and corner boom. If that tuning process already sounds annoying, this probably isn’t your sub.
