Specs that matter for vinyl listeners
| Feature |

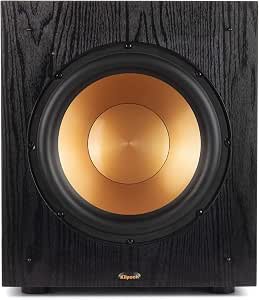

Klipsch Synergy Sub-100 |
What this means in practice |
| Driver size |
10-inch driver |
Enough for small to medium rooms if your goal is support, not maximum slam |
| Enclosure style |
Powered home subwoofer cabinet |
Built-in amp keeps setup simpler than passive bass solutions |
| Design |
Down-firing subwoofer |
Can work well in casual placement, but still needs testing in-room |
| Amplification |
Built-in powered amplification |
You don't need a separate amp for the sub itself |
| Inputs |
RCA/LFE input |
Best paired with a stereo receiver or amp that can feed it properly |
| Crossover control |
Adjustable crossover |
Helps blend the sub with bookshelf speakers instead of overlapping badly |
| Phase control |
Phase switch/control |
Useful for tightening bass at the listening position |
| Best use case |
Music-first small or medium room system |
Best as a fill-in for compact speakers, not a giant-room solution |
For vinyl, the controls matter more than the spec sheet.
A 10-inch powered sub is often enough, but only if the crossover and phase controls let you blend it cleanly with your mains.
That's the difference between a sub that helps and one that keeps announcing itself. Bigger isn't always better. Sometimes it's just more obvious.
Setup checklist for a turntable system
The easiest path is turntable into a phono preamp, or a receiver's phono input, then from the stereo receiver to the subwoofer.
If you expect to run the turntable straight into the sub, the plan falls apart immediately.
Start with a crossover around 70 to 80 Hz for most bookshelf speakers. If your mains are very small, you might go a little higher, but too high makes bass easy to localize.
Set phase at 0 degrees first. Then test 180 if bass sounds thin at your seat.
Keep gain low to start. Bring it up until the system sounds fuller, not louder.
Don't assume the nearest corner is best. A small move along the front wall can clean up boominess more than any knob adjustment.
The most common mistakes are predictable: buying before checking outputs, setting the crossover too high, and judging the sound after five minutes.
If you want help with the full chain, start with our turntable setup guide and this primer on what a phono preamp does.
